EMANT300 Low Cost USB 24 bit DAQ Module

FEATURES

  • Low cost and portable data acquisition system
  • Up to 6 channels of differential multiplexed ADC
  • Single channel 22 bit @ 10 samples/sec
  • Single channel 16 bit waveform @ 2500 samples/sec (max)
  • 1 channel of 8-bit D/A conversion (current output)
  • 8 digital IO channels
  • One 16-bit general-purpose counter OR 16-bit PWM
  • USB 2.0 Full Speed connectivity to desktop PC, notebook
  • Low cost and easily available 25 pin D-Sub connects to the physical world
  • Application adaptors with instructional guides for fuss free learning

APPLICATIONS

The EMANT300 is a low-cost and compact 24 bit (DAQ) data acquisition module developed for learning purposes. It can be used readily with a desktop personal computer for data acquisition and control. When connected to a notebook, portability and/or isolation is achieved.

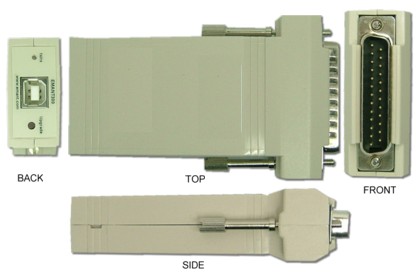

EMANT300 USB DAQ

Together with the communication capabilities inherent in the computer, it allows learners to experiment and design solutions that capture, control, compute and collaborate with the world.

The high resolution 24 bit ADC, Differential Inputs & Programmable Gain Amplifier simplifies sensor connection. Learners can connect thermocouples, load cells and strain gauges directly to measure temperature, weight and strain without needing expensive and sophisticated signal conditioning.

The 8 bit current output DAC allows users to measure resistance directly. Thus, resistive sensors like thermistors can be connected directly to measure temperature.

The 16 but counter can be used to measure flow rate or RPM. When the counter is not used, its clock can be used for 16 bit PWM output for heating or motor control experiments.

USB (can be used with USB 2.0 or USB 1.1) allows for quick and fuss free connection. 3 icons (LabVIEW) or 6 lines of code (C#, VB on .NET) later, the learner has created a voltage meter.

Compare EMANT300 USB DAQ and EMANT380 Bluetooth DAQ

SOFTWARE SUPPORT AVAILABLE

To use the drivers require knowledge of the respective programming languages.

LabVIEW driver

(ver 7.0 or later)

LabVIEW

.NET driver

Use with C#, VB and C++ (.NET Framework 2.0 or later)

double volt; EMANT300 DAQ = new EMANT300(); DAQ.Open(); volt = DAQ.ReadAnalog(Emant300.AIN.AIN0, Emant300.AIN.COM); Console.WriteLine(volt); DAQ.Close();

Using the internet connectivity, the same voltage can now be read across the world using email, browser or messenger.

Simple examples are provided to allow the learner to explore and build on the knowledge.

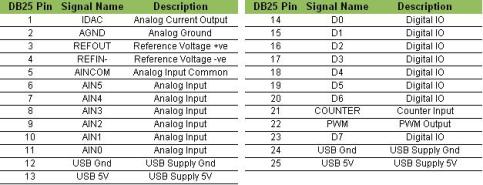

EMANT300 USB DAQ module male DB25 pin out

DB25 Connector EMANT300 Connection

Specification (PDF file size 140Kb)ROHS

Price US$99
Status Discontinued
